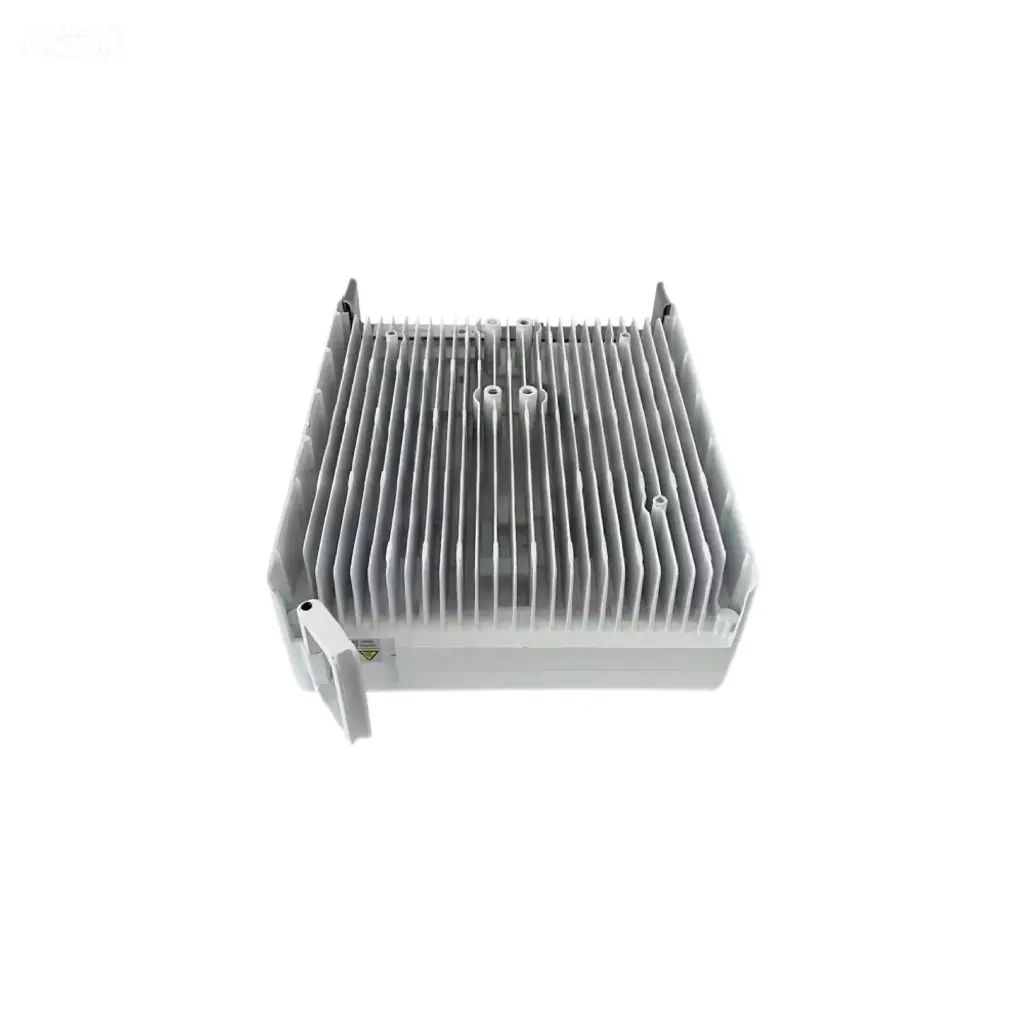

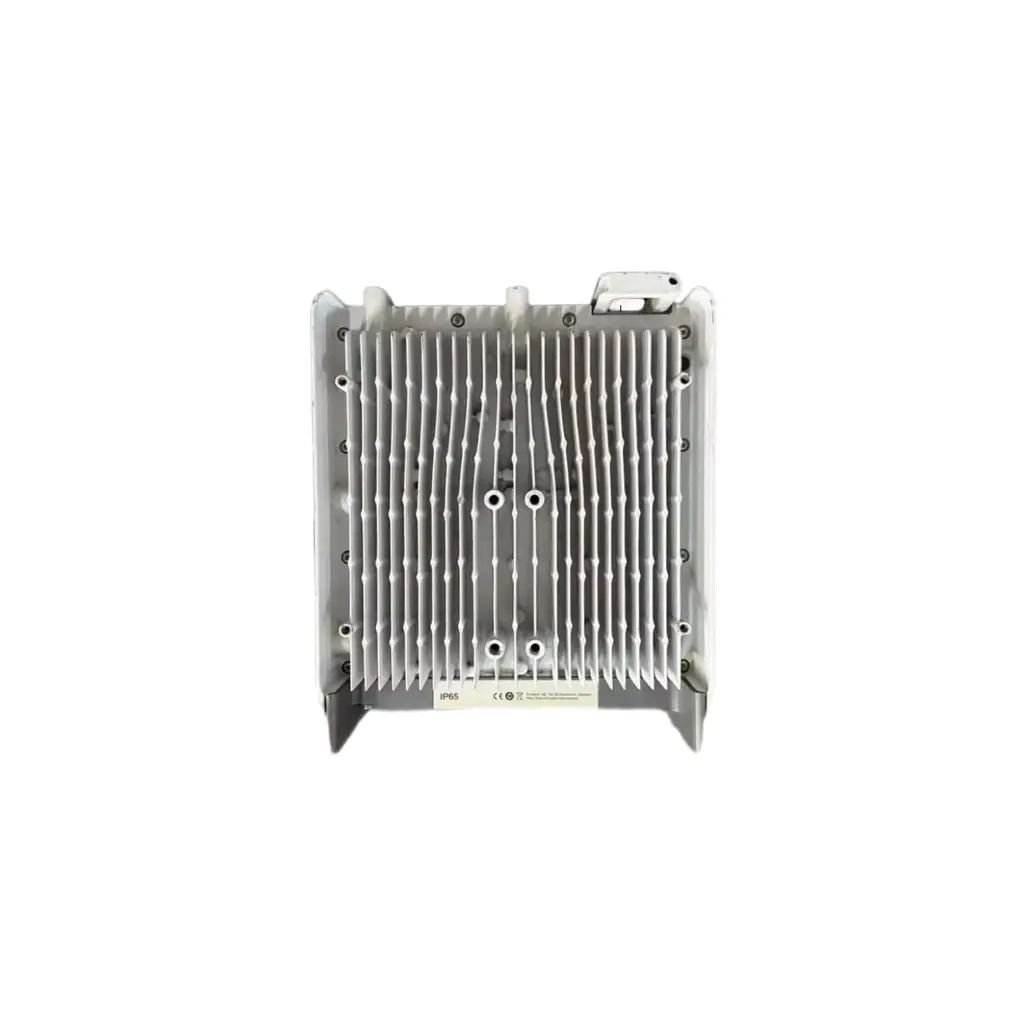

Ericsson Radio 2217 B20 Overview
The Ericsson Radio 2217 B20 (KRC 161 549/1) is a compact 2T2R macro remote radio unit for 3GPP Band 20 (800 MHz) in the Ericsson Radio System. With 2 x 40 W output in a 10-litre, 12 kg housing, it is a light and easy-to-install radio for LTE 800 coverage layers.


Key Specifications
- Product number: KRC 161 549/1
- Frequency band: B20 (800 MHz) – DL 791-821 MHz / UL 832-862 MHz
- Configuration: 2T2R, up to 2 x 40 W output power
- Instantaneous bandwidth: up to 40 MHz
- Radio technology: LTE (FDD)

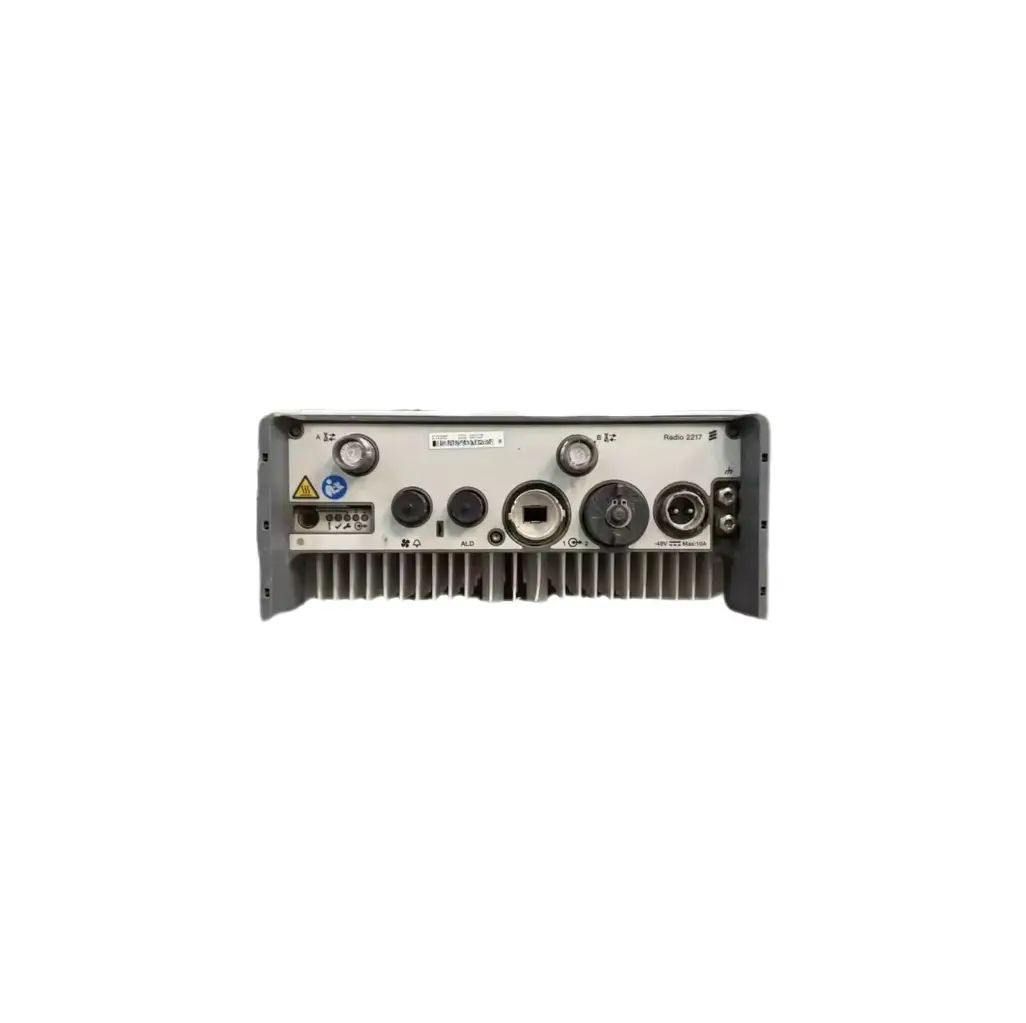

- Interfaces: 2 x 4.3-10 antenna ports, 2 x CPRI (exchangeable SFP), RET 2.0 / AISG TMA support
- Size and weight: approx. 10 litres, 12 kg
- Power: -48 V DC; outdoor IP65, -40 to +55 °C
Specifications may vary by hardware revision and software release. Please confirm the exact part number before ordering.
Typical Applications
Radio 2217 B20 is used for LTE 800 coverage layers, rural and indoor-penetration coverage, and replacement of failed radios. It connects over CPRI fibre to Ericsson basebands such as the Baseband 5212, 5216, 6630 and 6631. Other 2217 models: Radio 2217 B7 (2600 MHz).
Frequently Asked Questions
Is the Radio 2217 B20 2T2R or 4T4R?
It is 2T2R (two transmit and two receive branches), with up to 2 x 40 W output power.
Which baseband does the Radio 2217 B20 work with?
It works with Ericsson Radio System basebands connected over CPRI fibre, such as the Baseband 6630 and 6631, subject to the software release on the site.
How can I confirm the exact version?
Check the product number (KRC 161 549/1) and revision on the unit label. We can send label photos of the actual unit before shipment.
Why Buy From TelecomBTS
- Every unit is functionally tested and VSWR tested before shipment
- 90-day warranty on refurbished units
- Part number and hardware version confirmed before you order
- Secure packing and international shipping
Contact us by WhatsApp (+86 187 3329 4669 / +86 139 3088 8705) or email jack@telecombts.com with the model, part number and quantity you need for current stock, condition and pricing.
